Code
|
ANT-MA-00004
|
|
Description
|
Mars 5Dbi Panel Antenna
|
|
Band
|
4G 698-960 MHz / 1710-2700 MHz
|
|
Frequency
|
698-960 MHz / 1710-2700 MHz
|
|
Gain
|
5-6.5dBi
|
|
Colour
|
Grey
|
|
OEM
|
MARS 4G Panel Antenna, 5dBi, 698 to 2700 MHz, N Female
|
|
Plug
|
N-Female
|
|
Type
|
Antenna Panel
|
|
Description Extended
|

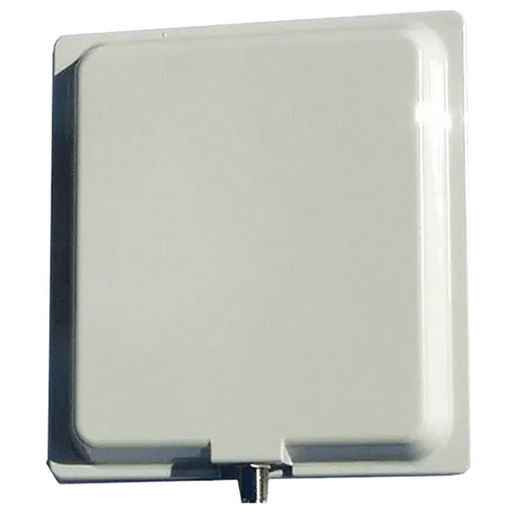

The MARS MA-CLTE-14 antenna is a fully IP65 weatherproof panel antenna that provides strong performance over all major 3G and 4G frequency bands. The antenna provides a consistent, stable 5 to 6.5 dBi gain across the 700 to 2700 MHz 4G LTE bands. As a single-port (SISO) antenna it is most commonly used to rebroadcast 4G signal when connected to a repeater.
It can be found in many 4G repeater installations providing signal to areas immediately surrounding a house or building.
|
|
Feature
|
5 dBi gain from 698 to 960 MHz
6.5 dBi gain from 1710 to 2700 MHz
|
|
Size
|
231x215x38mm
|
|
Dimensions
|
231x215x38mm
|
|
Freq.
|
700 to 2700MHz
|
|
Manufacturer
|
Blackhawk
|
|
IP Rating
|
IP65
|
