CEL-FI GO4 BUILDING REPEATER - CARRIER SWITCHED
Code
RPR-CF-00733
Description

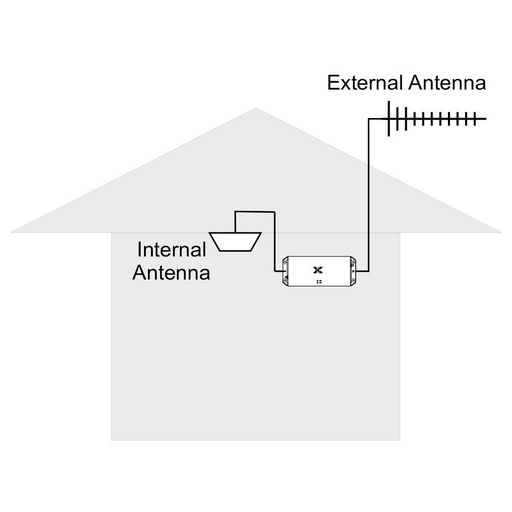

Go4 Mobile Telstra / Optus / Vodafone - With External LPDA and Internal ceiling dome antennas
Band
3G/4G/5G
Colour
White
Description Extended
Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.
Device Type
Building Pack
External
WEB-021
Feature
700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but currently not enabled or approved)
Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
Up to 3000 m2 coverage area
Two band simultaneous relay
Total System Relay Bandwidth – Up to 40 MHz
Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
Ethernet Port for connection to internet source for live monitoring
Frequency
700-4000MHz
Gain
12/14dBi
In
LPDA 12/14dBi
Internal
ANT-BH-OM-C
Lead
6M + 10M LMR240
Manufacturer
Cel-Fi
Network
Telstra, Optus or Vodafone
OEM
GO4 LPDA / Dome building pack
Out
Dome Ceiling
Plug
N
Power
12Vdc
Type
Building Pack
Wagner eBook
06-2
WES eBook
06-2
Qty
Cost Inc GST
Cost Ex GST
ORDER CODE:
RPR-CF-00733
STOCK STATUS
INSTOCK
QTY
SWITCHABLE TO SUIT TELSTRA, OPTUS OR VODAFONE NETWORKS
700L / 850 / 900 / 1800 / 2100 / 2600 MHz (Note:700 band is not supported on Vodafone) 3G, 4G, VoLTE, NB-IoT, (5G Ready*) Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time Up to 3000 m² coverage area, Two band simultaneous relay Total System Relay Bandwidth – Up to 40 MHz Includes 12V 2.5A AC power supply.
Note: GO4 has the future capability to boost 5G as the feature is there but not enabled as it has not been approved by the carriers.
When it does become approved, users will be able to run an update through the app which will enable the 5G functionality on the GO4 device.
SWITCHABLE TO SUIT TELSTRA, OPTUS OR VODAFONE NETWORKS
700L / 850 / 900 / 1800 / 2100 / 2600 MHz (Note:700 band is not supported on Vodafone) 3G, 4G, VoLTE, NB-IoT, (5G Ready*) Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time Up to 3000 m² coverage area, Two band simultaneous relay Total System Relay Bandwidth – Up to 40 MHz Includes 12V 2.5A AC power supply.
Note: GO4 has the future capability to boost 5G as the feature is there but not enabled as it has not been approved by the carriers.
When it does become approved, users will be able to run an update through the app which will enable the 5G functionality on the GO4 device.
