Cellular Accessories

Antenna

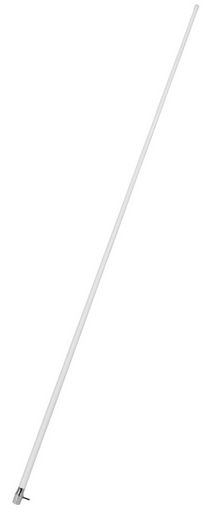

The 02462CH is a marine antenna designed to operate within the 690–960 MHz, 1710–2700 MHz, and 3500–3700 MHz frequency bands. It is encased in a smooth, robust white fibreglass radome and includes five metres of low-loss cable. The cable is terminated with an SMA plug, providing flexibility to adapt to other connector types as required for compatibility with various radios.

CELLULAR ANTENNA 5G 7.5dBi 1800MM BOAT

ANT603CH







Home
 >  Antenna
 >  Cellular Antenna 5G 7.5Dbi 1800Mm Boat
 >  ANT603CH




CELLULAR ANTENNA 5G 7.5dBi 1800MM BOAT




Code ANT603CH
Benelec 02462CH
Colour White
Freq. 690-960MHz 1710-2700MHz 3500-3700MHz
Gain 3-7.5dBi
Impedance 50Ω nominal
Length 1828mm
Manufacturer Benelec
Material Fibreglass and chromed brass
OEM 02462CH
Polarisation Vertical
Power 50W
Termination SMA plug
Type 5G
VSWR < 2.2:1 Max both bands
Brand. Benelec


ORDER CODE:
ANT603CH

STOCK STATUS
Please Call

View Product Category
See All products in the same Product category

690-960MHz 1710-2700MHz 3500-3700MHz 1” MARINE BASE

The 02462CH is a marine antenna designed to operate within the 690–960 MHz, 1710–2700 MHz, and 3500–3700 MHz frequency bands. It is encased in a smooth, robust white fibreglass radome and includes five metres of low-loss cable. The cable is terminated with an SMA plug, providing flexibility to adapt to other connector types as required for compatibility with various radios.

  • Smooth white fibreglass radome.
  • 5 metres low-loss cable.
  • SMA plug connector.
  • Chromed brass fittings.
  • Compatible with adjustable bases (sold separately).
  • Dual-band coverage.
  • Factory tuned; requires no further adjustment.




    •


    DescriptionFileSize
    Datasheet ANT603CH.pdf 285 KB
