4X4 Port Hybrid Combiner N Female

			Product Description

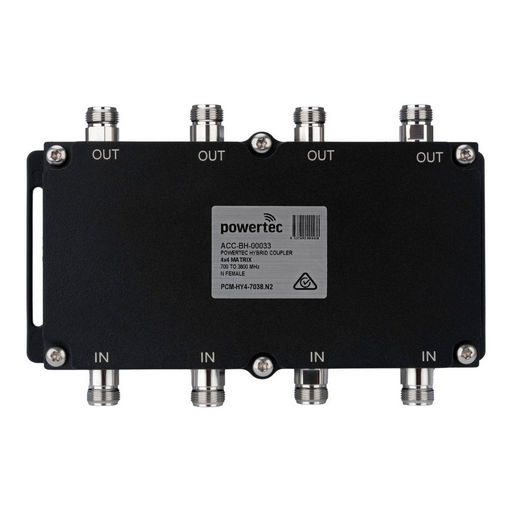

			4X4 PORT HYBRID COMBINER N FEMALE

			700-3800MHz Description: Hybrid Couplers are used in advanced RF transmission systems for interaction-free signal combining. Blackhawk's 4x4 Hybrid Matrix is a highly effective repeater combiner, commonly used to distribute multiple 4G/5G services across multiple distribution feeder cables. With four input ports, up to four repeaters can be combined across four outputs with a -6 dB coupling loss. 4x4 Hybrid Couplers provide more effective division than Power Dividers. Covers 4G/5G frequencies from 700 to 3800 MHz. 6 dB Coupling across four outputs (25:25:25:25%). Low PIM -153 dBc. 4x N Female input and 4x N Female output ports.

Tip! Narrow products in this family using filter options on the left!

View Product Category
See All products in the same Product category

Products
Ask a Question
Bulk Buy / Project Pricing
Downloads

Order Code

MANUFACTURER

FREQ.

DBC

INPUT

OUTPUT

IMPEDANCE

POWER

INSERTION LOSS

IP RATING

VSWR

More Info

ACC-BH-00033

Blackhawk

700-2700MHz

-153dBc

4x N-Female

50Ω

150W each

≤0.5dB

IP65

≤1.25

Details

No downloads currently available for this product.

Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
