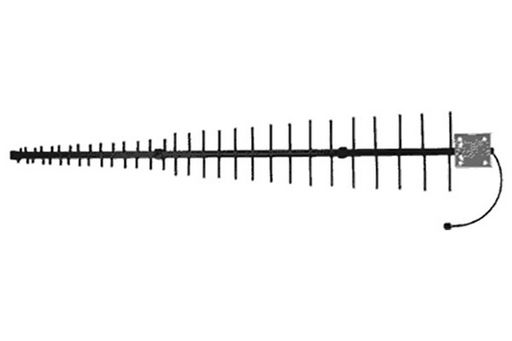

CEL-FI ANTENNA LPDA 11dB - BLACKHAWK

4G-5G LPDA ANTENNA - 698MHz TO 4GHz

Description:

Operating on all 4G and 5G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network. This is the ideal external antenna for Cel-Fi repeater systems.

  • 11.3 dBi peak gain across lower bands 698 to 960 MHz
  • 11.5 dBi peak gain across bands 1695 to 2700 MHz
  • 9.5 dBi gain across upper bands 3300 to 4000 MHz
  • Ruggedised construction for Australian conditions
  • Fully welded, powder coat aluminium construction
  • Stainless-steel pole-mounting clamp included
  • 30cm tail with pre-terminated N Female connector + Optional 10M LMR240 Cable
  • Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G & 5G

  • Frequency Range (MHz) 698-960 / 1695-2700 / 3300-4000 MHz
    Input Impedance 50 Ω
    Peak Gain 11.3 / 11.5 / 9.5 dBi
    VSWR ≤ 1.8:1 / ≤ 1.8:1 / ≤ 1.6:1
    Polarisation Vertical, linear
    Horizontal Beam-width 60 / 45 / 34°
    Vertical Beam-width 46 / 40 / 30°
    Maximum Input Power 50 W
    Input Connector N Female
    Cable 300 mm RG-142 tail
    Lightning Protection DC Ground
    Radiator Material Fully welded aluminium, black powder coat
    Mounting Stainless Steel, pole mount Ø30-50 mm
    Dimensions 1240 x 200 x 60 mm
    Packing Dimensions 1290 x 210 x 90 mm
    Weight 2.2 kg
    Rated Wind Velocity 192 km/h
    Operating Temperature -40 to +65°C

    The Blackhawk LPDA Antenna provides an ideal solution for 4G / 5G voice and data applications.
    The LPDA antenna covers all cellular bands between the 700 and 4000 MHz range with a high peak gain which projects maximum energy in the direction of the cell tower, while maintaining a wide enough beam to capture signal reflections off nearby buildings, hills, and signal scattered by trees.
    The antenna was redesigned in late 2019 to cover the new 3.5 GHz 5G band, making it now an ideal solution for LTE-A Pro and 5G high-speed connectivity when mounted in 2×2 or 4×4 MIMO configuration.
    This antenna can be used on any mobile phone network in Australia, in any area without worrying about compatibility. A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptionally wideband performance by phasing a series of elements together, much like an ordinary yagi but with each successive element of a smaller (or larger) length. The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.
