4 INPUTS TO 4 OUTPUTS 700-2700MHz
Description:
A 4×4 hybrid combiner designed for 700–2700 MHz systems, engineered for ultra‑low PIM, ≤0.5 dB insertion loss, and 150 W per‑port power handling, featuring N‑female connectors and an IP65 enclosure for reliable indoor or outdoor RF deployment.
Covers 4G frequencies from 700 to 2700 MHz.6 dB Coupling across four outputs (25:25:25:25%).Low PIM -153 dBc.4x N Female input and 4x N Female output ports.

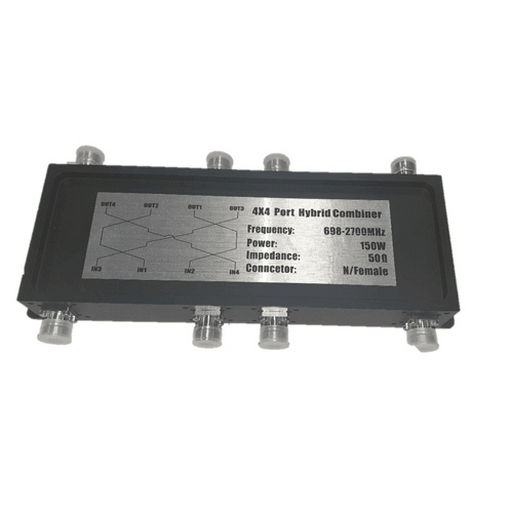

The Powertec ACC‑BH‑00017 4×4 Hybrid Combiner is a wideband (700–2700 MHz), low‑PIM, IP65‑rated RF combining matrix designed to merge up to four radio or BTS outputs and evenly distribute their combined signals across four antenna or DAS feed lines. Using internal hybrid couplers, it maintains isolation, phase balance, and low return loss while supporting high‑power operation up to 150 W per port. Each of the four N‑Female inputs is split across all four outputs, allowing multi‑band, multi‑carrier, or multi‑operator signals to be delivered uniformly to multiple antennas, making it ideal for LTE/5G macro sites, DAS deployments, and neutral‑host systems requiring stable, low‑intermodulation RF combining.
