Cellular Accessories

SWITCHABLE TO SUIT TELSTRA, OPTUS OR VODAFONE NETWORKS

CEL-FI GO4 G41 BUILDING REPEATER

Your current selection:

imgShow more options

  Product Description

CEL-FI GO4 G41 BUILDING REPEATER

SWITCHABLE TO SUIT TELSTRA, OPTUS OR VODAFONE NETWORKS

Description:

Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models. GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider. Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management. Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.

  • 700L / 850 / 900 / 1800 / 2100 / 2600 MHz (Note:700 band is not supported on Vodafone)
  • 3G, 4G, VoLTE, NB-IoT, (5G Ready*)
  • Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
  • Up to 3000 m² coverage area, Two band simultaneous relay
  • Total System Relay Bandwidth – Up to 40 MHz
  • Includes 12V 2.5A AC power supply.




  • Note: GO4 has the future capability to boost 5G as the feature is there but not enabled as it has not been approved by the carriers.
    When it does become approved, users will be able to run an update through the app which will enable the 5G functionality on the GO4 device.

    buy




    Tip! Narrow products in this family using filter options on the left!






    Order Code TYPE IN OUT EXTERNAL DESCRIPTION BAND CERTIFICATION COLOUR DESCRIPTION EXTENDED DEVICE TYPE FEATURE FREQUENCY GAIN INTERNAL LEAD MANUFACTURER NETWORK OEM PLUG POWER More Info
    dummny img
    RPR-CF-00695 Standalone Unit Required* Required* Required* Go4 Mobile Telstra / Optus / Vodafone - Unit Only 3G/4G/5G - White - Standalone Unit Designed for vehicles and moving transport applications
     100dB of system gain (latest software update required using WAVE App)
     Excludes external and internal antennas
     Carrier approved
    * Required Cel-Fi Telstra, Optus or Vodafone GO4 base unit only 12Vdc img
    Details
    dummny img

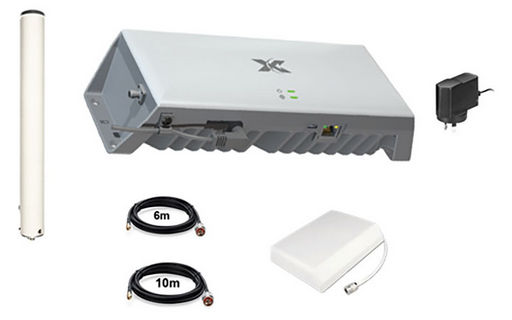

    RPR-CF-00730 Building Pack Omni 6dBi Wall Mount Panel WEB-024 Go4 Mobile Telstra / Optus / Vodafone - With External omni and Internal wall antennas 3G/4G/5G White Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
     GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
     Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
     Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.
    Building Pack 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
     3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but currently not enabled or approved)
     Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
     Up to 3000 m2 coverage area
     Two band simultaneous relay
     Total System Relay Bandwidth – Up to 40 MHz
     Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
     Ethernet Port for connection to internet source for live monitoring
    700-2600MHz 6dBi ANT-BH-WAL 6M + 10M LMR240 Cel-Fi Telstra, Optus or Vodafone GO4 Omni / Wall building pack N 12Vdc img
    Details
    dummny img

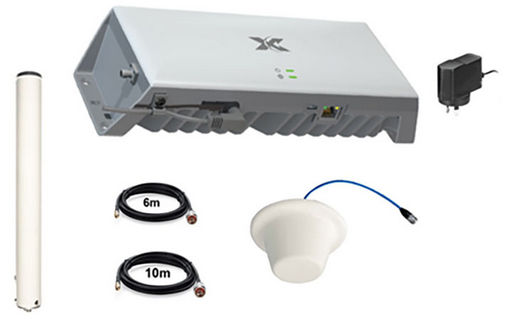

    RPR-CF-00731 Building Pack Omni 6dBi Dome Ceiling WEB-024 Go4 Mobile Telstra / Optus / Vodafone - With External omni and Internal ceiling dome antennas 3G/4G/5G White Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
     GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
     Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
     Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.
    Building Pack 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
     3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but currently not enabled or approved)
     Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
     Up to 3000 m2 coverage area
     Two band simultaneous relay
     Total System Relay Bandwidth – Up to 40 MHz
     Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
     Ethernet Port for connection to internet source for live monitoring
    700-2600MHz 6dBi ANT-BH-OM-C 6M + 10M LMR240 Cel-Fi Telstra, Optus or Vodafone GO4 Omni / Dome building pack N 12Vdc img
    Details
    dummny img

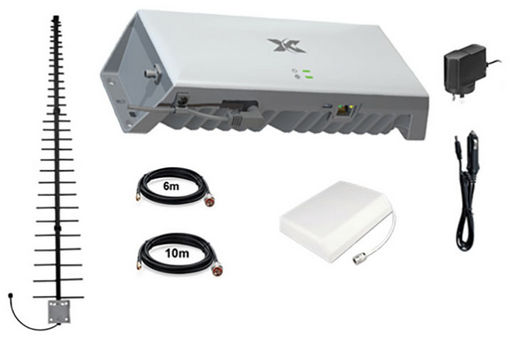

    RPR-CF-00732 Building Pack LPDA 12/14dBi Wall Mount Panel WEB-021 Go4 Mobile Telstra / Optus / Vodafone - With External LPDA and Internal wall antennas 3G/4G/5G White Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
     GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
     Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
     Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.
    Building Pack 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
     3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but currently not enabled or approved)
     Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
     Up to 3000 m2 coverage area
     Two band simultaneous relay
     Total System Relay Bandwidth – Up to 40 MHz
     Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
     Ethernet Port for connection to internet source for live monitoring
    700-4000MHz 12/14dBi ANT-BH-WAL 6M + 10M LMR240 Cel-Fi Telstra, Optus or Vodafone GO4 LPDA / Wall building pack N 12Vdc img
    Details
    dummny img

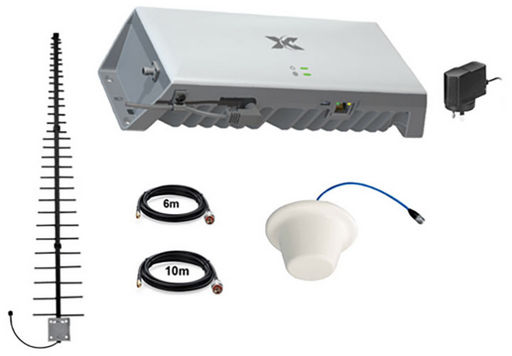

    RPR-CF-00733 Building Pack LPDA 12/14dBi Dome Ceiling WEB-021 Go4 Mobile Telstra / Optus / Vodafone - With External LPDA and Internal ceiling dome antennas 3G/4G/5G White Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
     GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
     Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
     Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.
    Building Pack 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
     3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but currently not enabled or approved)
     Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
     Up to 3000 m2 coverage area
     Two band simultaneous relay
     Total System Relay Bandwidth – Up to 40 MHz
     Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
     Ethernet Port for connection to internet source for live monitoring
    700-4000MHz 12/14dBi ANT-BH-OM-C 6M + 10M LMR240 Cel-Fi Telstra, Optus or Vodafone GO4 LPDA / Dome building pack N 12Vdc img
    Details

    RPR-CF-00695 - Product Downloads

    Description File Size
    Datasheet RPR-CF-00695.pdf 326 KB
    RPR-CF-00730 - Product Downloads

    Description File Size
    Datasheet RPR-CF-00695.pdf 326 KB
    RPR-CF-00731 - Product Downloads

    Description File Size
    Datasheet RPR-CF-00695.pdf 326 KB
    RPR-CF-00732 - Product Downloads

    Description File Size
    Datasheet RPR-CF-00695.pdf 326 KB
    RPR-CF-00733 - Product Downloads

    Description File Size
    Datasheet RPR-CF-00695.pdf 326 KB
