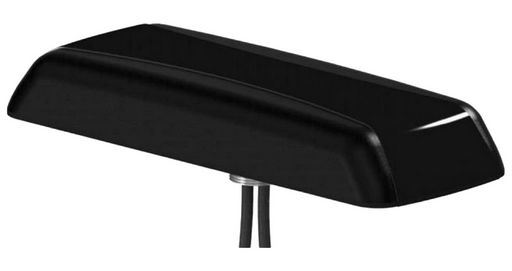

MOBILE 8 BAND SURFACE ANTENNA - 5G / WIFI / GNSS /GPS

Code	ANT611
OEM	02942052M
Benelec	02942052M
Type	2x 5G - 617-960MHz, 1710-3800MHz, 4x Tri-Band WiFi - 2.4GHz, 4.9GHz, 5.8GHz, 2x GNSS/GPS
Gain	4G/5G (617-960MHz): 3dBi, 4G/5G (1710-3800MHz): 6dBi, WiFi: 5dBi, GNSS: 5dBi
Base	8x SMA
Colour	Black

ORDER CODE:
ANT611

STOCK STATUS
SPECIAL ORDER PRICE & AVAILABILTY TO BE CONFIRMED

ETA : PLEASE CALL

QTY

PDF Product Details Page Options

Available options when creating Page

	Show price
	Display CELLINK Detail

Submit

Email Product Details Page Options

Send to Email Address

Notes

Available options when creating Page

	Show price
	Display CELLINK Detail

Send

Product Description


	A Mobile multipurpose 8 Port Ground Dependant antenna for GNSS/GPS, 5G and Quad WIFI 2.4/4.9/5.8 GHz applications typically vehicle mounted. 2x 5G antenna (MiMo) (617-960 MHz and 1710-3800 MHz) 4x Tri-Band WiFi 2.4, 4.9GHz and 5.8 GHz 2x GNSS/GPS antenna for GPS L1, Glonass, Beidou and Galileo No diplexer needed Full hemispherical coverage for the GNSS and GPS Built-in high gain, low noise amplifier Right-Hand Circular Polarization 3.3 - 5 VDC for GNSS supply DC supply via GNSS RF-connector

View Product Category
See All products in the same Product category

Product Description
Ask a Question
Bulk Buy / Project Pricing
Downloads

A Mobile multipurpose 8 Port Ground Dependant antenna for GNSS/GPS, 5G and Quad WIFI 2.4/4.9/5.8 GHz applications typically vehicle mounted.
2x 5G antenna (MiMo) (617-960 MHz and 1710-3800 MHz)

4x Tri-Band WiFi 2.4, 4.9GHz and 5.8 GHz

2x GNSS/GPS antenna for GPS L1, Glonass, Beidou and Galileo

No diplexer needed

Full hemispherical coverage for the GNSS and GPS

Built-in high gain, low noise amplifier

Right-Hand Circular Polarization

3.3 - 5 VDC for GNSS supply

DC supply via GNSS RF-connector

Description	File	Size
Datasheet	ANT611.pdf	902 KB
