Avl Gps & Cellular Shark Fin

			Product Description

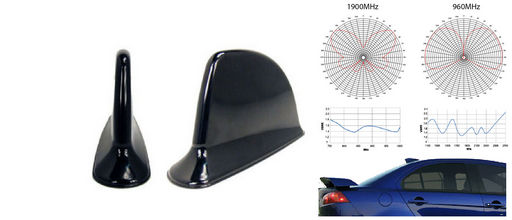

			AVL GPS & CELLULAR SHARK FIN

			TWO IN ONE HOOD MOUNT - AVL GPRS NextG 850 GSM900/GSM1800 4G LTE 3G-2100 Description: Multi-band antenna operating in the 820-960MHZ and 1710-2500MHz bands for all mobile phone coverage plus also incorporates an active GPS antenna. ABS radome is ideally suited to applications where a low profile and rugged construction is required. Exits 2x leads LL195/LL100 5M each to both same plug type. GPS requires phantom power 3-5Vdc. Made in Australia.

Tip! Narrow products in this family using filter options on the left!

View Product Category
See All products in the same Product category

Products
Ask a Question
Bulk Buy / Project Pricing
Downloads

Order Code	SIZE	PLUG	OEM	GAIN	More Info
ANT528	44x182x85mm[h]	SMA x2	0294206	820-960MHz[5dbi] 1710-2500MHz[6dbi] 1575.42MHz[28dbi]	Details
ANT535	44x182x85mm[h]	Fakra x2	0294206F	820-960MHz[5dbi] 1710-2500MHz[6dbi] 1575.42MHz[28dbi]	Details

GASKET FOR ANT528 ANTENNA

	Order Code	MANUFACTURER	SIZE	More Info
	GASKET528	Generic	140x40mm	Details

No downloads currently available for this product.

Please contact us with your download requirements,e.g. User Manual, Data Sheet, etc and will get back to you.
