SUPPORTS APPLE CARPLAY AND ANDROID AUTO (WIRELESS AND WIRED)

7" MULTIMEDIA RECEIVER TO SUIT FORD

Your current selection:

  Product Description

7" MULTIMEDIA RECEIVER TO SUIT FORD

SUPPORTS APPLE CARPLAY AND ANDROID AUTO (WIRELESS AND WIRED)

Description:

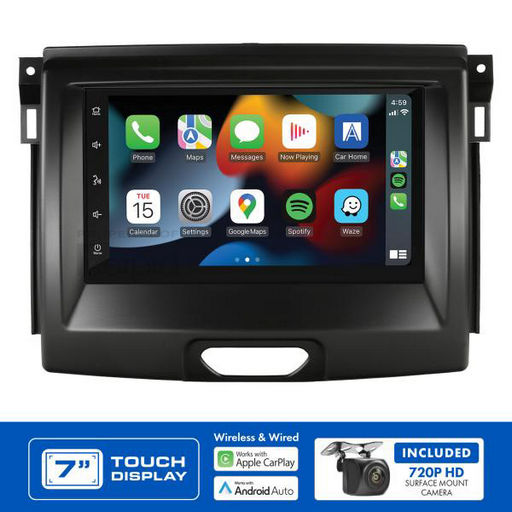

The Aerpro AM9129K package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for Ford Everest UA (2015-2017) and Ranger PX2 (2015-2018) vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.

  • Includes all the parts required to complete the installation
  • Retains important vehicle features including steering wheel controls when applicable
  • 7" Capacitive touch display
  • Works with Apple CarPlay (wireless and wired)
  • Supports Android Auto (wireless and wired)
  • Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
  • AM / FM Tuner with RDS & presets (18FM/12AM)
  • Dual rear USB inputs (1.5A + 1.5A max charging)
  • Dual camera input with 1 Aerpro 720P AHD Camera included
  • Rear A/V input (RCA)
  • 4V / 6CH RCA Preout
  • MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
  • 8 Band graphic EQ
  • 8 EQ Presets
  • Subwoofer level control
  • 45W x 4 Max built-in amplifier
  • Shallow 2-DIN chassis mounting design
  • External microphone included

  • Aerpro AM7X Specifications:
    LCD Display:
    Size: 7"
    Resolution: 1024x600
    Touch Screen: Capacitive (G+G)
    System Specifications:
    OS System / CPU: Linux 3.4.5 / SPHE8368U
    RAM / Flash Memory: 128MB / 256MB
    DIN Size: 2 DIN Short Body
    Power Output
    Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
    MAX Power (4 Ohm): 4CH x 45W
    Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
    Device Ports
    USB (Rear) Playback Formats: CPAA & Media
    USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
    USB MAX Capability: FAT32_32GB
    Aux Inputs / Outputs:
    Rear A/V Input (RCA Type - 3pcs): Yes
    Reverse Camera Input: Yes (720P AHD Compatible)
    Second Camera Input: Yes (720P AHD Compatible)
    Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
    Bluetooth:
    Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    Bluetooth Version: V4.2+EDR
    Microphone: External Microphone
    ID3 Tag/Information (Artist, Album, Song): Yes
    HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
    Tuner:
    AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
    FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
    AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
    RDS: Yes
    FM Antenna Connector Impedance: 50 Ohm
    FM Tuner Connector: Motorola
    RCA Preamp Outputs:
    RCA Preamp Output: 2-Pair (Front / Rear)
    Subwoofer RCA Output: Yes
    Subwoofer Level Control: Yes
    Preamp Voltage (1.2,2,4,5,6): 4V p-p
    Tone Control:
    8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
    Loudness: Yes
    LPF - Frequencies (Sub): Yes
    8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
    Other Features:
    Steering Wheel Control: Yes, with Aerpro SWC Adaptor
    OSD Language: English
    LED Colour (Buttons / Keys): White
    Accessories:
    Power Harness: Yes with ISO
    AV-In Cable (RCA with Audio L/R, Video In): Yes
    Reverse Camera Input: Yes
    4.2CH Audio Out Cable: Yes
    External Microphone: Included

    AHD Camera Specifications:
    Inclusions:
    720P AHD Surface Mount Camera (wired)
    6m of Video Cable (RCA) with in-line Reverse Trigger
    Mount Type: Surface Mount
    Camera Type: Front, Rear Or Reverse
    Image Sensor: Sony 225, 1/3 CMOS AHD
    Lens Angle 150 Degree



    buy










    Order Code CAR MAKE INCLUDES MANUFACTURER SUITS More Info
    dummny img
    AM9129K `Ford Facia Kit (Black), Steering Wheel Control Interface, Reverse Camera Retention Lead, Antenna Adapter, Universal Patch Lead Aerpro Ford Ranger 2015-2018 PX MkII, Everest 2015-2022 UA, UA MKII img
