Code
|
ANT-BH-OG-02
|
|
Description
|

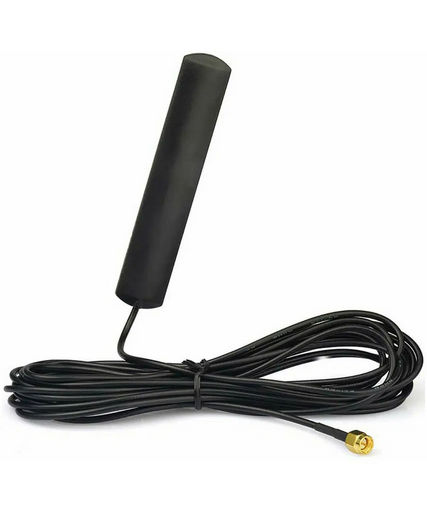

Blackhawk Adhesive Mount Antenna 698-2700MHz for Cel-Fi GO
|
|
Band
|
3G/4G
|
|
Frequency
|
698-960MHz / 1710-2700MHz
|
|
Gain
|
3dBi
|
|
Colour
|
Black
|
|
Lead
|
3M
|
|
Length
|
170mm
|
|
OEM
|
Blackhawk 4G Adhesive Antenna, 700 to 2700 MHz, SMA Male
|
|
Plug
|
SMA/M
|
|
Type
|
Adhesive mount Antenna
|
|
Description Extended
|
The Blackhawk 4G & IoT adhesive mount antenna is a modest performing mobile antenna that covers most worldwide 4G cellular bands between 700 and 2700 MHz. It is commonly used to improve 4G signal strength in metering and telemetry.
Adhesive antennas are compact in design which allows unobtrusive and convenient installation in vehicles, machinery, and electronic signage.
This type of antenna design contains a simple PCB microstrip element which has been shaped to transmit across the entire wide operating frequency range with high efficiency. While peak gain is not an important consideration in this type of antenna, the model provides a stable gain of around 3 dBi which is quite typical of this design.
|
|
Feature
|
3 dBi gain across lower bands 698 to 960 MHz
3 dBi gain across upper bands 1710 to 2700 MHz
Mounting by 3M Adhesive
SMA Male connector
Cable length 3 metres.
|
|
Manufacturer
|
Blackhawk
|
