Code
|
ANT-BH-00022
|
|
Description
|
Blackhawk Parabolic Antenna
|
|
Band
|
3G/4G//5G
|
|
Frequency
|
698-960MHz / 1695-2700MHz / 3300-3800MHz / 5125-5875MHz
|
|
Gain
|
8.5-23.2dBi
|
|
Colour
|
Black
|
|
OEM
|
Powertec Ultraband Grid Antenna, 600 to 6500 MHz
|
|
Plug
|
N-Female
|
|
Type
|
Grid Antenna
|
|
Description Extended
|

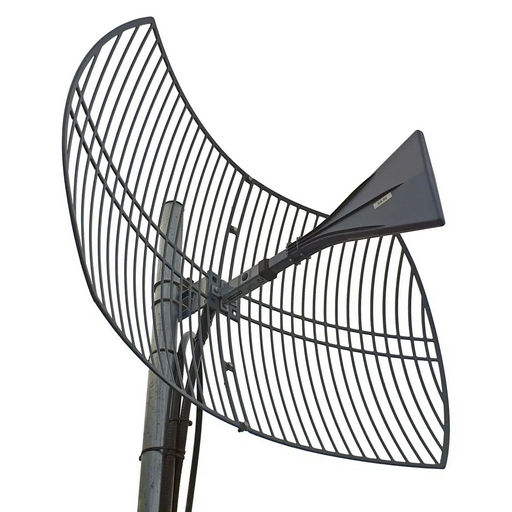

The Blackhawk Ultraband Parabolic Grid Antenna is designed to provide maximum gain across the entire 3G, 4G, and 5G bands on all Australian and New Zealand networks. The patented one-of-a-kind design allows for very high gain and directionality on all frequencies between 600 MHz and 6500 MHz.
|
|
Feature
|
Ideal for areas with very low or noisy signals to maximise the input signal for cellular modems or Cel-Fi repeaters.
Due to the narrow beamwidth, this antenna can also be used in areas where multiple cell sites are present and isolating a single tower is required.

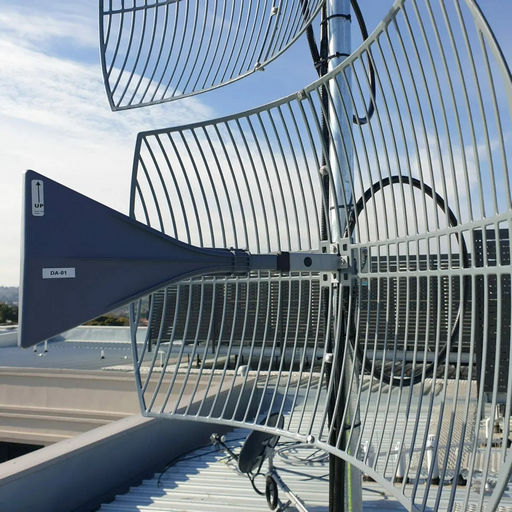

Two antennas can be pole mounted on the appropriate angles in a MIMO configuration to support high-speed data throughput.
An extraordinarily unique feature is the antenna’s adjustable reverse-log feed which is moved along the parabolic grid’s focal point to preference low, mid or high-frequency band operation.
The grid is powder-coated in an industrial-grade flat grey finish to provide improved durability and environmental resistance, permitting a long service life.
|
|
Manufacturer
|
Blackhawk
|
