Code
|
ANT-BH-00018
|
|
Description
|

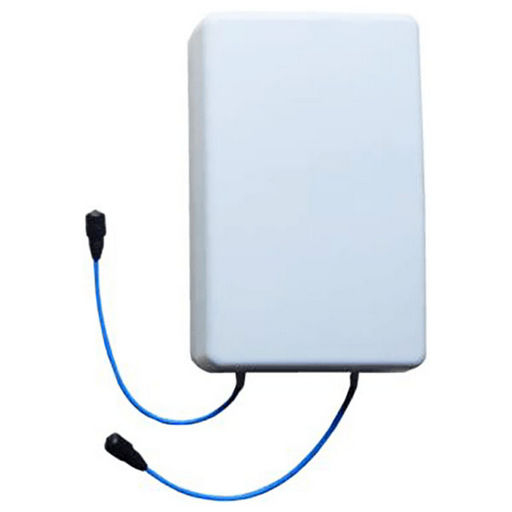

Blackhawk MIMO 7/9dBi Panel Antenna N/F
|
|
Band
|
4G/5G
|
|
Frequency
|
698-960MHz / 1690-2700MHz / 3300-4000MHz
|
|
Gain
|
5.5-8.5dBi
|
|
Colour
|
White
|
|
Lead
|
30cm
|
|
OEM
|
Blackhawk 4G-5G MIMO Indoor Panel Antenna, 700 to 4000 MHz, N Female
|
|
Plug
|
N Female x2
|
|
Type
|
Antenna Panel
|
|
Description Extended
|
The Blackhawk Indoor MIMO Panel antenna is designed for use in an In-Building Coverage system, such as those engineered by Powertec using the Cel-Fi Quatra. It’s 5.5 to 8.5 dBi peak gain is used to push coverage in the forward direction, such as when wall mounted.
|
|
Feature
|
The antenna has been built to Australian standards imposed for Distributed Antenna Systems.
This ensures it can be legally used within buildings to broadcast mobile broadband and voice services over Telstra, Optus, and/or Vodafone-TPG.
This antenna remains compact and visually unobtrusive despite operating an extremely wide frequency range 698 to 4000 MHz in support of all 4G and 5G FR1 networks within the Low and Mid-Bands.
|
|
Manufacturer
|
Blackhawk
|
